Ensure a more permanent pothole repair with BRP Road Patch.

Build Pavement Resilience with BRP Road Patch

Build resilience into pavement surfaces with BRP Road Patch.

BRP Road Patch provides a flexible waterproof repair solution that seals the road surface and absorbs movement in the subbase layers, thus retarding further deterioration.

BENEFITS

Application is simple
Reduces overall cost of maintenance
No expensive tools or machinery required
Consistent in quality, eliminating traditional rework
Waterproof seal with the flexibility of bitumen rubber.

APPLICATIONS

Sealing of pothole repairs
Crocodile and longitudinal crack repairs
Edgebreak repairs
Speed humps, rumble strips, kerb extensions
Waterproofing and joint sealing
Sealing around manhole lids and utility covers
Trench reinstatement
Texturing flushing or bleeding
Bridge deck surfacing and sealing
Remote sites.


      Grade 4

      10mm aggregate

      Grade 5

      7mm aggregate

    (750mm x 1000mm per patch)
    (750mm x 1000mm per patch)

      Minimum order

      1 Packet: 3 patches

      Minimum order

      1 Packet: 5 patches

BRP ROAD PATCH CASE STUDIES

BRP Road Patch

BRP Road Patch is a factory fabricated road repair product that is manufactured on paper, onto which a bitumen rubber binder holds bitumen precoated aggregates of various sizes. It is a proven seal and maintenance product that has been used for over 35 years internationally.

A total weatherproofing system

BRP Road Patch provides a flexible waterproof repair solution that seals the road surface and absorbs movement in the subbase layers, thus retarding further deterioration.

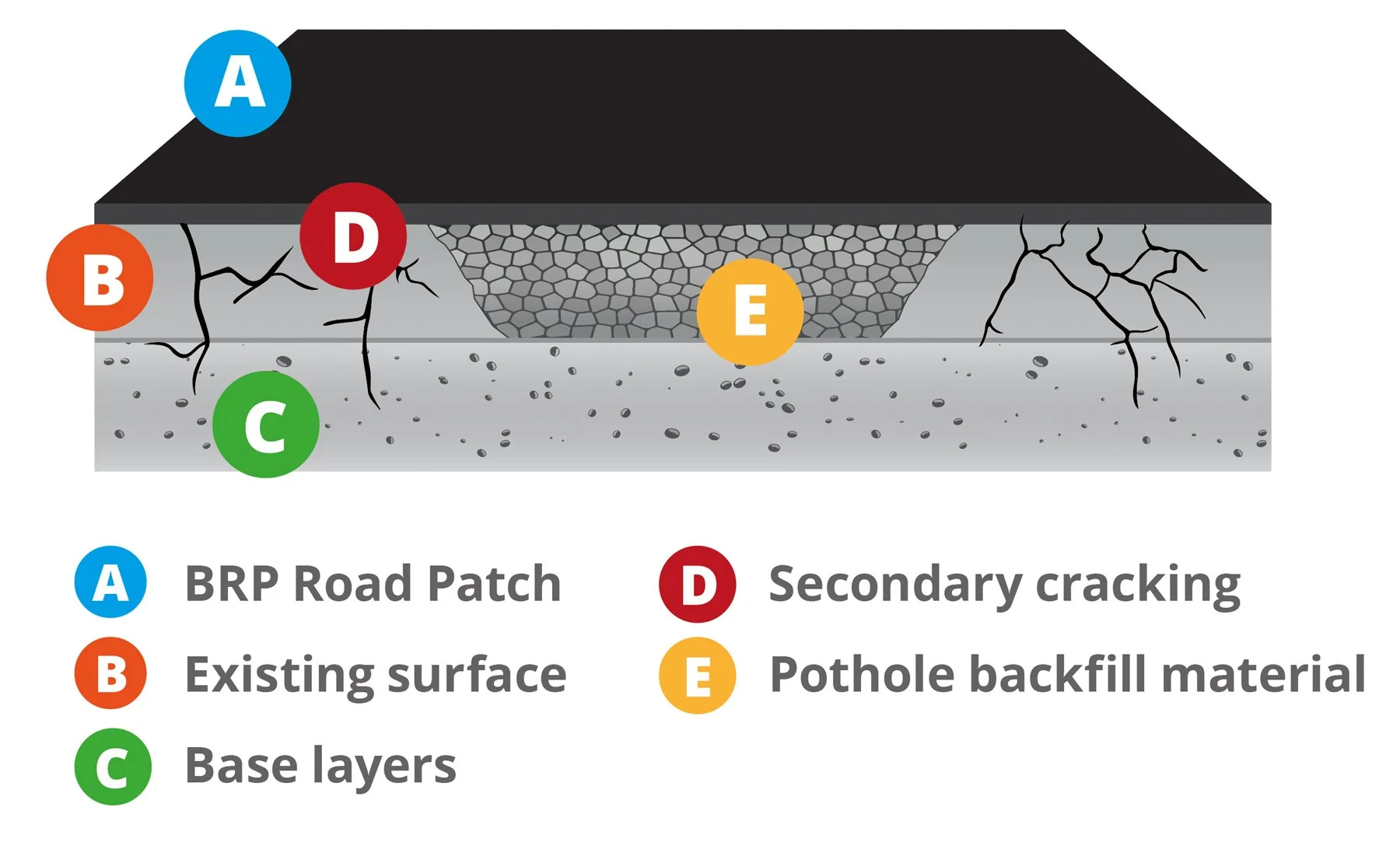

Apply a BRP Road Patch over the repair area extending a minimum of 100mm past repair edge to seal structural damage and restore a waterproof surface.

PRODUCT ENQUIRY

Eliminates Stress Cracking

The BRP Road Patch is an ideal sealing option where flexible pavements meet inflexible structures.

Environmental and cost savings:

Eliminates revisits
Lower cost material usage
Low capital outlay
Effective preventative maintenance
Less disruption to road users
Increased productivity.

BRP Road Patch is a versatile repair solution, beyond just potholes. Check out key applications from crocodile crack repairs to bridge deck surfacing.

- Sealing of pothole repairs
- Crocodile crack repairs
- Longitudinal crack repairs
- Edgebreak repairs
- Speed humps, rumble strips, kerb extensions
- Waterproofing and joint sealing
- Sealing around manhole lids and utility covers
- Trench reinstatement
- Texturing flushing or bleeding
- Bridge deck surfacing and sealing
- Remote sites where conventional methods are uneconomical.
- Provides a highly flexible and a totally waterproof seal
- Overlap onto surrounding surfaces prevents perimeter cracking and further potholes developing
- Cold applied
- No wastage
- Safe to handle and quickly apply
- Road is open to traffic immediately after application
- Increases skid resistance in damaged sections of road
- Can be applied in adverse weather conditions
- Overlap embeds into existing surface.

SIMPLE INSTALLATION PROCEDURE WHICH REQUIRES MINIMAL LABOUR AND TOOLS

1.

Sweep all loose particles from area. Demarcate 100mm beyond any visible defects.
2.

Evenly apply emulsion to demarcated area and to the back of the BRP Road Patch.
3.

Wait for emulsion to break ie turn from brown to black. Place the BRP Road Patch onto emulsion treated area.
4.

Apply a small quantity of emulsion to edges and joints. Blind edges and joints with crusher dust or sand.
5.

Drive over the BRP Road Patch with construction vehicle on site. Several passes are recommended. Open to traffic immediately.
